Image Classification

Computer Vision CMP-6035B

Dr. David Greenwood

March 2022

Content

  • HOG features
  • Visual Words
  • Spatial Pyramid
  • PCA and LDA
  • Evaluation

Image Classification

Passing a whole image to a classifier.

Feature Extraction

What are good features?

Feature Extraction

The main difficulty in solving these image classification problems is finding good image features.

What are good features?

  • Good features should exhibit between-class variation.
  • Good features should suppress within-class variation.

Other desirable properties of features are:

  • invariant to rotation, translation and scaling of an image
  • invariant to illumination

What are good features?

texture for features

Texture is a good feature, and often provides good diagnostics.

  • e.g. summary statistics on gradient orientations
kitchen 1
kitchen 2

Exact feature locations are not important.

  • Small variations in the layout will not change the class label.

Classification Applications

Classify an X-ray image as containing cancer or not.

  • A binary classification problem.
  • Normally requires significant human expertise!

Material classification, eg. wood, metal, plastic, etc.

  • Texture is likely useful, but…
  • Illumination may significantly change the texture.
  • Extract features invariant to illumination.

Scene classification e.g. kitchen, bathroom, beach.

  • Importance of context.
  • Scenes contain many objects, but their exact location is less important.

Image Classification Strategies

Extracting low level features from an image.

Low Level Features

Two low level features, which are used often, include SIFT and HOG features, combined with some colour descriptors.

SIFT - Scale Invariant Feature Transform

  • Localised feature based on image gradients.
  • One of the first of its kind.
  • Some proprietary aspects to its use.
  • covered in a later lecture.

HOG - histograms of oriented gradients.

  • Also a gradient based feature.
  • next up!

Histograms of Oriented Gradients

  • Image is divided into regions - a window.
  • Each window is further divided into cells.
  • Each cell is typically 6 to 8 pixels wide.

Histograms of Oriented Gradients

A local 1D histogram of gradient directions.

  • 1D dimension is the angle of the gradient
  • the angle is quantised into a discrete set of bins
  • for example, for a bin size 20 degrees, we have 18 bins
  • sum of all elements is equal to number of pixels in the cell

Angle

  • A gradient is calculated using a centred \([-1,0,1]\) filter.
  • The filter is applied vertically and horizontally.
  • We derive the gradient direction from these first derivatives.

\[\alpha = \tan^{-1} \frac{\delta g}{\delta y}~ / ~ \frac{\delta g}{\delta x}\]

Magnitude

For colour images, we can calculate gradient for the three channels and select the one with the largest magnitude.

\[|G| = \sqrt{\left(\frac{\delta g}{\delta x}\right)^2 + \left(\frac{\delta g}{\delta y}\right)^2} \]

Binning

For each pixel within a cell, its gradient orientation is used to increment the relevant histogram bin.

  • in proportion to the gradient magnitude

Interpolation

To enforce invariance to some small gradient orientation differences, we interpolate histogram contributions between the neighbouring bin centres.

  • Typical binning - 20 degrees.

Contrast Normalisation

We choose a certain configuration of cells and call it a block

  • typically 2-3 cell wide
  • perform normalisation within each block
  • various schemes proposed in original paper
  • e.g. modified L2 norm \(v \rightarrow v / \sqrt{||v||^2_2 + \epsilon^2}\)

HOG example

Dalal and Triggs. “Histograms of Oriented Gradients for Human Detection”, CVPR, 2005

Visual Words

Once the features are extracted, we would often use dictionaries of visual words.

Visual Words

Features representing scenes should be able to summarise these scenes.

Visual Words

Imagine we would like to classify images containing sets of objects.

Visual Words

The precise location of objects may not be relevant.

  • The objects may move or deform within the image.
  • The viewpoint may change or the image may be deformed or scaled.

Visual Words

This suggests some kind of high level histogram representation of the scene.

  • How many cups or plates visible in a kitchen scene?
  • Will these objects be present in an outdoor scene?
  • How many trees might you expect in a kitchen?

Visual Words

Detect interest points in the image.

  • e.g. corners, T-junctions etc.
  • build neighbourhoods around them.

Visual Words

Describe these neighbourhoods with low level features.

For example, SIFT

Visual Words

Vector-quantise these features.

  • e.g. by k-means clustering.
  • These clusters are very much like words.

Visual Words

For each image, build a histogram of these visual words.

  • Two similar images should have similar histograms.

Visual Words

Compare histograms using histogram intersection.

\[HI = \sum_{i=1}^{n} \min(h_i, g_i)\]

  • Sivic and Zisserman, “Efficient Visual Search…”, Proc. IEEE 2008.

Spatial Pyramid Kernels

Extending Visual Words…

Spatial Pyramid Kernels

The concept of visual words can be taken further so that it incorporates a rough layout of the scene.

Spatial Pyramid Kernels

  • split an image into 4 quarters
  • calculate \(HI\) for each quarter and the whole image
  • resulting in 5 different figures.

Spatial Pyramid Kernels

The quarters can be subdivided further into smaller blocks

  • too small blocks are less useful.

Spatial Pyramid Kernels

The final similarity figure is a sum of block-wise \(HI\)s weighted by the inverse of the block width.

  • Lazebnik et al. “Beyond bags of features…”, CVPR 2006

Dimensionality Reduction

The features we create tend to be high dimensional.

PCA

Principal Component Analysis (PCA)

  • There can be a lot of redundancy in this data.
  • We could use PCA to compress this data.

Fisher LDA

The extension of PCA is Fisher LDA

  • Linear Discriminant Analysis (LDA)
  • also referred to as Dimension Reduction with Canonical Variates

Fisher LDA

Is a projection onto a subspace that maximises the ratio of the between-class variance to the within-class variance.

data

We have some data points belonging to two classes.

PCA

Difficult to distinguish the classes along the principal component.

LDA

Easier to distinguish the classes along the discriminant mode.

Classifier Evaluation

How do we evaluate the performance of the classifier?

Classifier Evaluation

Image Classification is often evaluated using two metrics:

  • precision and recall.

Classifier Evaluation

Precision : the percentage of recovered items that are relevant.

\[TP / (TP + FP)\]

Classifier Evaluation

Recall : the percentage of relevant items that are recovered.

\[TP / (TP + FN)\]

Classifier Evaluation

We also calculate average precision:

\[A = \frac{1}{N_r} \sum_{r=1}^{N}P(r)rel(r)\]

Average precision is the area under the Precision-Recall curve.

Classifier Evaluation

We also calculate average precision:

\[A = \frac{1}{N_r} \sum_{r=1}^{N}P(r)rel(r)\]

  • \(N_r\) is the number of relevant items
  • \(N\) is the total number of items
  • \(P(r)\) is the precision of first \(r\) items in the ranked list.
  • \(rel(r)\) a binary function that is 1 when the \(r^{th}\) document is relevant.

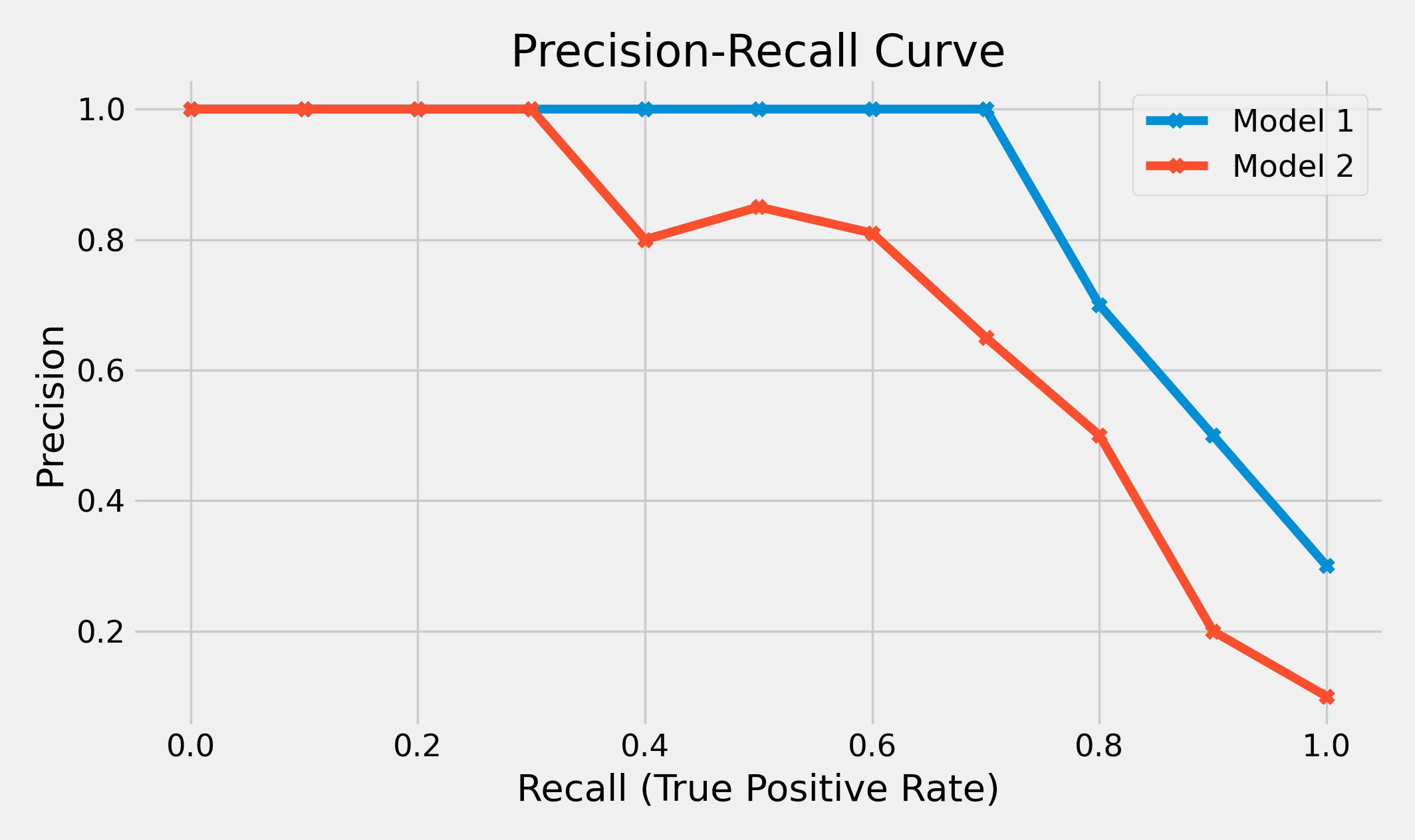

precision-recall for two models

Classifier Evaluation

ROC curves should be used when there are roughly equal numbers of observations for each class.

Precision-Recall curves should be used when there is a moderate to large class imbalance.

Summary

  • HOG features
  • Visual Words
  • Spatial Pyramid
  • PCA and LDA
  • Evaluation

Reading:

  • Forsyth, Ponce; Computer Vision: A modern approach, 2nd ed., Chapters 16,17 and 5.
  • Sonka et al., Image Processing, Analysis and Machine Vision, 4th ed., Chapter 10
