Object Detection

Image classification methods can detect an object in the image if there is just a single object in the scene and it clearly dominates the image.

If this constraint is not met, we are in the object detection scenario.

Object Detection

We can use similar techniques we have learnt in Image Classification to detect objects in an image.

Here we apply these techniques to sub-windows of the image.

This approach is called a sliding window method.

Sliding Window

First, let’s assume our objects have relatively similar size and fit into \(n \times m\) pixel windows.

Sliding Window

Build the dataset of positive and negative instances and train the classifier.

We could then slide the classification window over the image to search for the object location.

Sliding Window

But, there are problems:

Sliding Window

We tackle the first problem by searching over scale as well.

Gaussian Pyramid

Each layer of a pyramid is obtained by smoothing a previous layer with a Gaussian filter and subsampling it.

Gaussian Pyramid

We search using our \(n \times m\) window in each layer of the pyramid.

Sliding Window

The second problem is usually solved using non-maximum suppression.

Non-Maximum Suppression

Windows with a local maximum of classifier confidence suppress nearby windows.

Sliding Window

Train the classifier on \(n \times m\) windows.

Choose a threshold \(t\) and \(\Delta x\) and \(\Delta y\), where:

• \(t\) is a threshold for the classifier confidence.
• \(\Delta x\) and \(\Delta y\) are the step distance for each direction.

Sliding Window

Construct an Image Pyramid.

For each level:

• Apply the classifier to each \(n \times m\) window, stepping by \(\Delta x\) and \(\Delta y\) in this level to get a classifier confidence \(c\).
• If \(c\) is above \(t\), insert a pointer to the window into a list \(L\), ranked by \(c\).

Sliding Window

For each window \(w\) in \(L\), from highest confidence:

• remove all windows \(u \neq w\) that overlap \(w\) significantly
• overlap is calculated in the original image, by expanding coarser scales

Face Detection

Another classic method in face classification is Eigenfaces.

Viola-Jones object detection

P. Viola, and M. Jones,

Rapid Object Detection using a Boosted Cascade of Simple Features.

International Conference on Computer Vision and Pattern Recognition, pp. 511-518, 2001.

Viola-Jones object detection framework

A fast and robust method for face detection.

• Can be used for detection of other objects, not only faces.
• Robust - high detection rate and low false-positive rate.
• Detection only - not recognition.

Viola-Jones object detection framework

The method comprises four stages:

Viola-Jones Feature Extraction

Features need to be calculated fast!

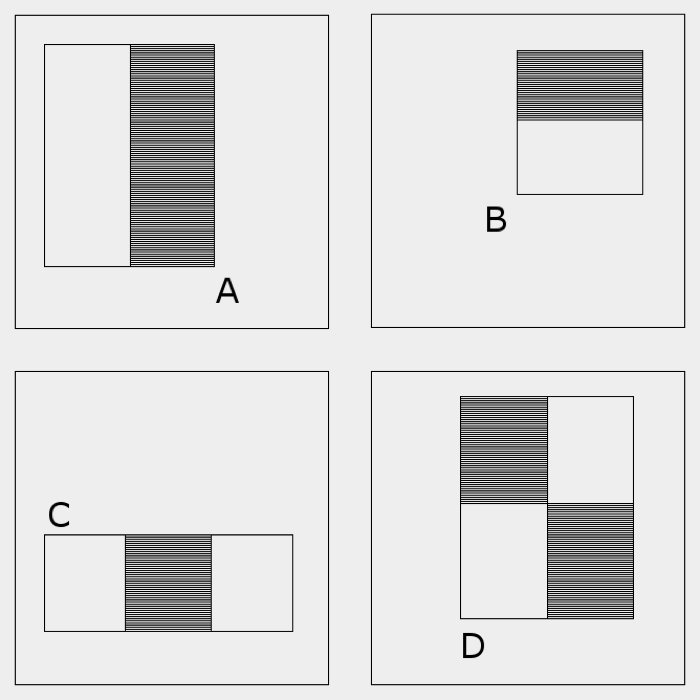

• Use a simple set of Haar-like features.
• add light rectangle and subtract dark rectangle
• features are translated within a sub-window

Viola-Jones Feature Extraction

Features can be calculated very quickly by pre-calculating the integral image.

\[ I(x, y) = \sum_{\substack{x' \leq x \\ y' \leq y}} i(x', y') \]

i.e. the sum of pixels to the left and above a given pixel.

Viola-Jones Feature Extraction

Sum of pixels under a rectangle:

• Value at pixel 1 is sum of rectangle A.
• Value at 2 is A + B.
• Value at 3 is A + C.
• at 4 is A + B + C + D.
• D = 4 + 1 - (2 + 3)

Viola-Jones Feature Extraction

Each of these 4 features can be scaled and shifted in a \(24 \times 24\) pixel sub-window.

• giving a total of approx 160,000 features.

Viola-Jones Feature Learning

The number of features extracted from an image is very large.

Viola-Jones Feature Learning

Modified Adaboost algorithm.

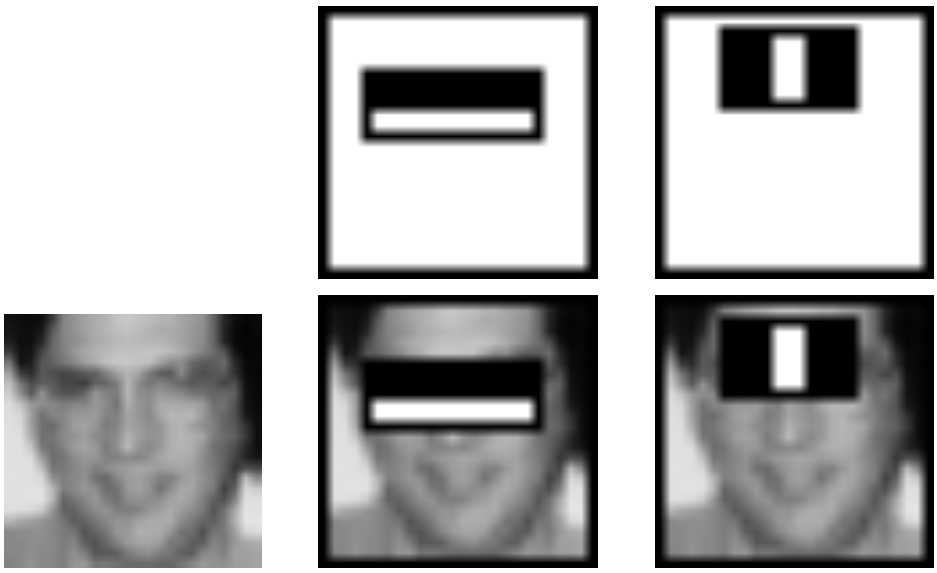

Viola-Jones Features

Viola-Jones Learning

Attentional cascade of boosted classifiers.

We can train a simple boosted classifier on a very low number of features and adjust its threshold to guarantee 100% detection rate.

Viola-Jones Learning

Many false positives, but we can easily reject most sub-windows.

• Sub-windows classified as positives are passed to the next stage of the cascade.
• Additional features are used in a more complex classifier.
• …and so on, to reduce the number of false positives.

Viola-Jones Learning

Attentional cascade of boosted classifiers.

• 38 layers with 6061 features
• Majority of sub-windows will be rejected in the early layers of the cascade where few features are needed.

Viola-Jones Multiple Detections

The image is scanned with sub-windows at different scales and different locations.

• Results from individual sub-windows are combined for the final result.
• Detected sub-windows are divided into disjoint sets.
• In each disjoint set we calculate the mean of four corners.

Viola-Jones

MATLAB has an implementation of the algorithm.

Viola-Jones

Very slow to train. The original paper reports weeks of training for the training set they used (5k faces, 9.5k non-faces).

Very fast to execute. On 700 MHz processor, it takes 0.067s to analyse 384x288 image.

Detecting Humans

Dalal and Triggs used a linear SVM classifier.

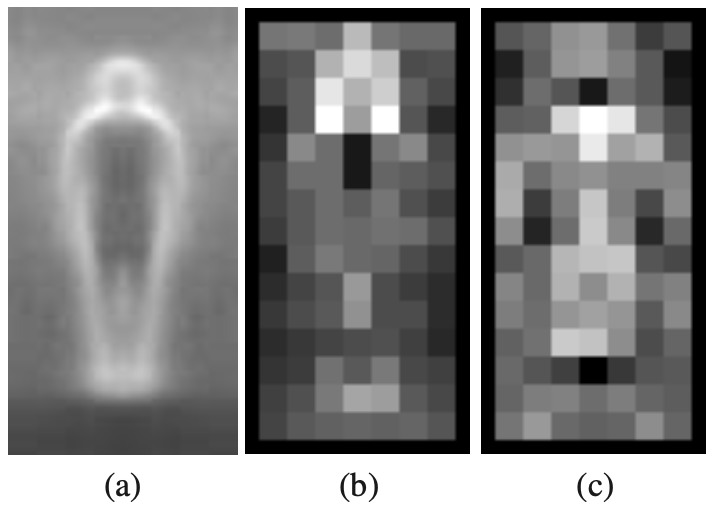

Detecting Humans

1. The mean gradient image for all data.
2. The maximum positive SVM weights.
3. The maximum negative SVM weights.

The SVM weights provide a nice visualisation of the decision boundary.

Detecting Humans

4. An example 64×128 test image.
5. The computed HOG descriptor.

Performance was reduced with less margin around the subject in the test images.

Detecting Humans

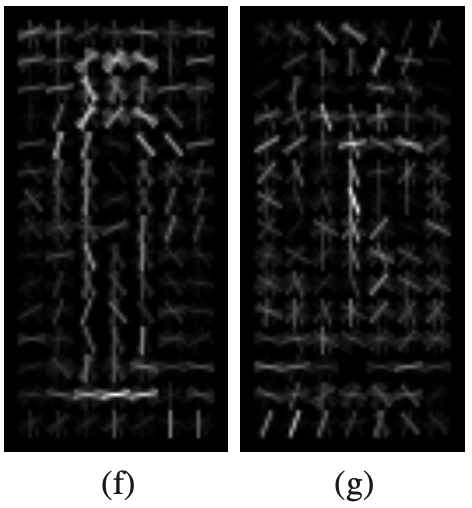

6. Positively weighted HOG descriptor.
7. Negatively weighted HOG descriptor.

Showing that the detector cues mainly on the contrast of silhouette contours and gradients inside the person typically count as negative cues.

Detecting Boundaries

Object detection through segmentation using boundary detection.

Edges are not the same as object contours or occluding contours.

Detecting Boundaries

At each window we extract features that will decide whether the centre pixel in the window is an occluding contour or not.

Detecting Boundaries

Features could be histograms produced from image intensity, oriented energy, brightness gradient, colour gradient etc.

The histograms are extracted from two halves of the window, and the distance between them is calculated. E.g. \(\chi^2\)

This distance is mapped to probability using logistic regression.

Detecting Boundaries

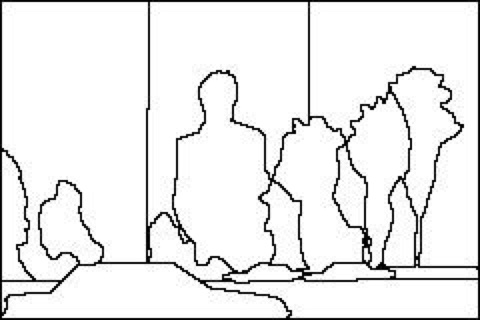

Training and test data require annotations.

Detecting Boundaries

Annotations are performed by different subjects.

Detecting Boundaries

Inconsistent annotations are averaged.

Detecting Boundaries

\[ P_b(x, y, \theta) \]

The probability that the pixel is a boundary for some orientation.

\[ P_b(x, y) = \max(\theta) P_b(x, y, \theta) \]

The maximum probability that the pixel is a boundary for all orientations.

Detecting Boundaries

Solution: weighted matching between the machine and human generated boundaries.

• Predicted boundary point too far away from any annotation is considered a false positive.
• If there are no predicted points close to the annotation, then this pixel is considered a false negative.

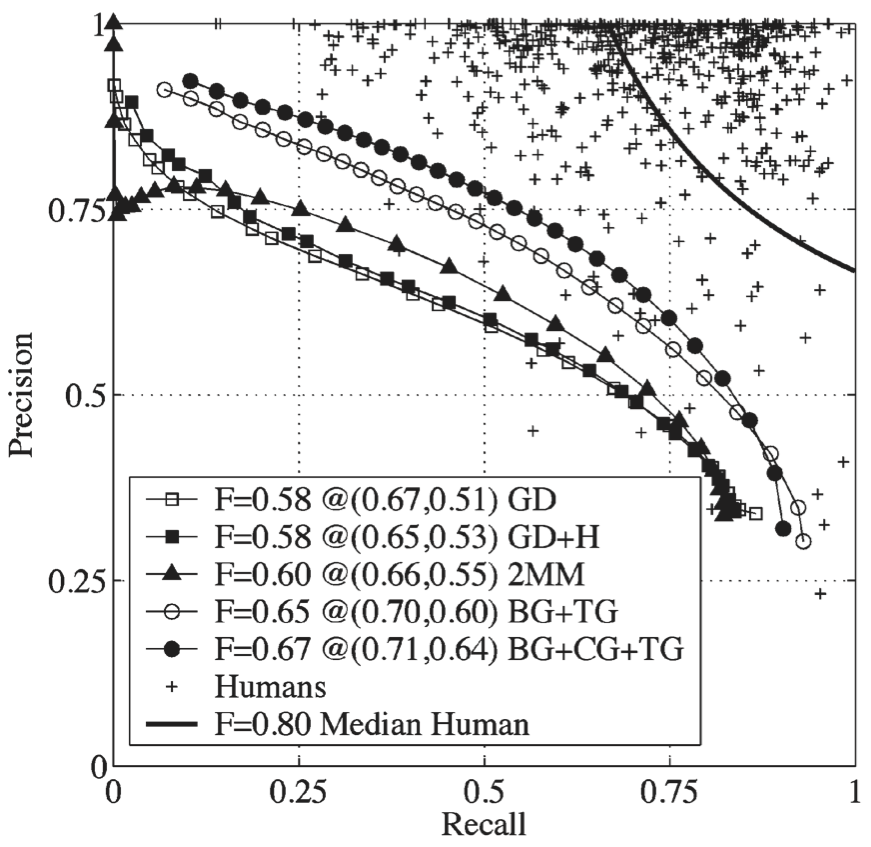

• Probability boundary map can then be thresholded which allows us to calculate precision-recall curves.

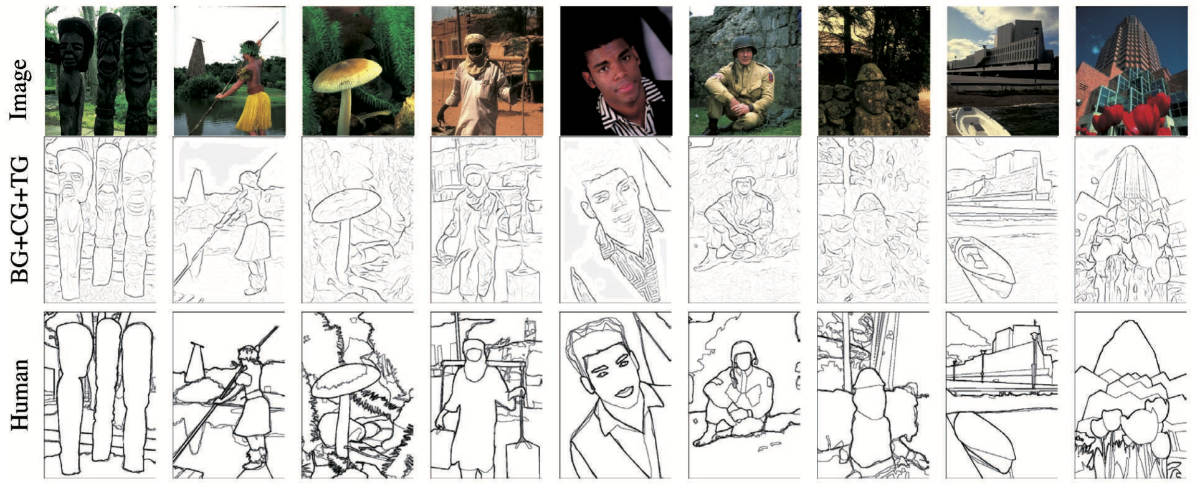

Detecting Boundaries

GD+H - Canny

BG+CG+TG - Martin et al.

Ground Truth

Detecting Boundaries

Martin, Fowlkes and Malik. Learning to Detect Natural Image Boundaries Using Local Brightness, Color and Texture Cues (2004).
