Representing Shapes

A shape in an image could be represented using the coordinates of edge pixels.

Representing Shapes

Pixel coordinates encode the shape and the location

• describes the shape in the image coordinate frame
• same shape in two locations appears to be different

Representing Shapes

We are not interested in where the shape is - just the representation of the shape itself.

Chain Codes

In which direction must we move to stay on the edge?

• Shape is a sequence of directions.
• This is a chain code.

Connectivity

• Connectivity is the notion of pixels being connected.
• A path must pass through connected pixels.
• In which directions can we travel to stay on the path?

Chain Code Example

Chain Codes

\(6 6 7 0 1 1 2 3 5 3 5\)

Chain Codes

For invariance to starting location:

• compute the chain code and rotate so the code represents the smallest m-digit shape-number.
• \(6 6 7 0 1 1 2 3 5 3 5 \rightarrow 0 1 1 2 3 5 3 5 6 6 7\)

Chain Codes

Chain codes are translation invariant.

• Adding a constant value to the x, y coordinates does not change the shape.

Chain codes are not scale or rotation invariant.

Chain Code Derivatives

Chain codes specify a direction in absolute terms.

• Eg. 0 represents East, regardless of current direction.

Chain Code Derivatives

This idea can be extended to use a relative encoding.

• Represent the next direction as the number of turns required to stay on the shape boundary.

• In this case, 0 corresponds to straightforward.

• This is a chain code derivative or differential chain code.

Chain Code Derivatives

To compute the chain code derivative:

• Compute the difference between chain code elements.
• Take the result modulo \(n\) (the connectivity).

Chain Code Derivatives

Need to be careful with the starting element.

• Common assumption is begin straightforward.
• Chain code wraps around, so starting code is relative to the last.

Chain Code Derivatives

• Chain Code: \(6 6 7 0 1 1 2 3 5 3 5\)
• Derivative: \(1 0 1 1 1 0 1 1 2 6 2\)

NB: pay attention to modulus of negative numbers.

Chain Code Derivatives

Chain code derivative provides rotational invariance for rotations of 90 degrees.

Chain Code Advantages

• compact representation - only boundary is stored
• invariant to translation
• easy to compute shape related features, e.g. area, perimeter, centroid

Chain Code Disadvantages

• No true rotational invariance and no scale invariance.
• Extremely sensitive to noise, sub-sampling loses definition.
• Cannot have sub-pixel accurate descriptions, only 4 or 8-connectivity.

Chain Code Disadvantages

Chain codes describe a specific instance of a shape.

• What about a class of non-rigid shapes?
• What about boundaries that are not closed?
• What about locating shapes automatically in images?

Aside: Fourier Series

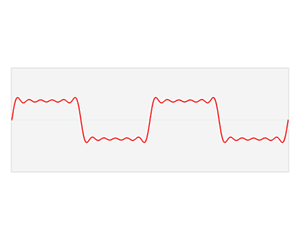

A Fourier series is an expansion of a periodic function \(f(x)\) in terms of an infinite sum of sines and cosines.

Aside: Fourier Series

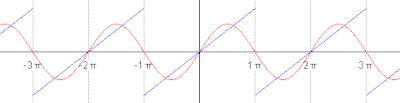

We can approximate non-periodic functions on a specific interval.

• by pretending the non-periodic part is periodic outside the interval.

Aside: Fourier Series

The Fourier series of a periodic function \(f(t)\) of period \(T\) is:

\[ f(t) = \frac{a_0}{2} + \sum_{n=1}^{\infty} \left[ a_n \cos \frac{2 \pi n t}{T} + b_n \sin \frac{2 \pi n t}{T} \right] \]

for some set of Fourier coefficients \(a_n\) and \(b_n\) defined by the integrals:

\[ a_n = \frac{2}{T} \int_{0}^{T} f(t) \cos \frac{2 \pi n t}{T} \mathrm{d}t,~ b_n = \frac{2}{T} \int_{0}^{T} f(t) \sin \frac{2 \pi n t}{T} \mathrm{d}t. \]

Aside: Fourier Series

A function is even when:

\[f(x) = f(-x) \text{ for all } x\]

It has reflective symmetry about the y-axis, e.g. \(x^2\) or \(cos(x)\).

We can approximate even functions using only cosine coefficients.

Aside: Fourier Series

A function is odd when:

\[ -f(x) = f(-x) \text{ for all } x\]

It rotational symmetry about the origin, e.g. \(x^3\) or \(sin(x)\).

We can approximate even functions using only sine coefficients.

It is useful to know about odd and even functions, but generally we will need to know both coefficients.

Elliptical Fourier Series

How do we go from Chain encodings to EFDs?

• First separate chain encodings into x and y projections.
• Allows us to deal with each dimension independently.

The projection of the first \(p\) links is the sum of differences between all previous links.

\[x_p = \sum_{i-1}^{p} \Delta x_i, ~ y_p = \sum_{i-1}^{p} \Delta y_i \]

For the x-projection:

• For East, North East, or South East, \(\Delta x = 1\).
• For North and South, \(\Delta x = 0\).
• For West, North West, or South West, \(\Delta x = -1\).

Similarly, for the y-projection:

• For North, North East, or North West, \(\Delta y = 1\).
• For East and West, \(\Delta y = 0\).
• For South, South East, or South West, \(\Delta y = -1\).

We will consider the “time” derivative of the chain.

Time here means the length of the chain.

• The contribution of horizontal and vertical links is one.
• The contribution of a diagonal link is \(\sqrt{2}\).

\[t_p = \sum_{i-1}^{p} \Delta t_i \]

Elliptical Fourier Series

Calculate the Fourier expansion for the x-projection.

\[ x(t) = \frac{a_0}{2} + \sum_{n=1}^{\infty} \left[ a_n \cos \frac{2 \pi n t}{T} + b_n \sin \frac{2 \pi n t}{T} \right] \]

NB: not to infinity, but to some useful number of coefficients.

where:

\[\frac{a_0}{2} = \frac{1}{T} \int_{0}^{T} x(t) ~\mathrm{d}t\]

and \(T\) is the length of the chain.

again, from the definition:

\[ a_n = \frac{2}{T} \int_{0}^{T} x(t) \cos \frac{2 \pi n t}{T} ~\mathrm{d}t,~ b_n = \frac{2}{T} \int_{0}^{T} x(t) \sin \frac{2 \pi n t}{T} ~\mathrm{d}t. \]

How can we calculate these coefficients?

The time derivative of \(x\) is periodic with period \(T\) and can itself be represented by the Fourier series:

\[ x'(t) = \sum_{n=1}^{\infty} \alpha_n \cos \frac{2 \pi n t}{T} + \beta_n \sin \frac{2 \pi n t}{T} \]

where:

\[ \alpha_n = \frac{2}{T} \int_{0}^{T} x'(t) \cos \frac{2 \pi n t}{T} \mathrm{d}t~, \beta_n = \frac{2}{T} \int_{0}^{T} x'(t) \sin \frac{2 \pi n t}{T} \mathrm{d}t \]

then:

\[ \alpha_n = \frac{2}{T} \int_{0}^{T} x'(t) \cos \frac{2 \pi n t}{T} \mathrm{d}t \]

The difference here is our chain code is a piecewise linear function, so the time derivative is constant.

\[ \begin{aligned} \alpha_n &= \frac{2}{T} \int_{0}^{T} x'(t) \cos \frac{2 \pi n t}{T} \mathrm{d}t \\ &= \frac{2}{T} \sum_{p=1}^{K} \frac{\Delta x_p}{\Delta t_p} \int_{t_{p-1}}^{t_p} \cos \frac{2 \pi n t}{T} \mathrm{d}t \end{aligned} \]

The “trick” is to notice that the integral over the whole period is a summation of the \(K\) chain links, and the derivative is a constant: the change in direction over the change in length.

finally, we take the antiderivative of the cosine term:

\[ \begin{aligned} \alpha_n &= \frac{2}{T} \int_{0}^{T} x'(t) \cos \frac{2 \pi n t}{T} \mathrm{d}t \\ &= \frac{2}{T} \sum_{p=1}^{K} \frac{\Delta x_p}{\Delta t_p} \int_{t_{p-1}}^{t_p} \cos \frac{2 \pi n t}{T} \mathrm{d}t \\ &= \frac{1}{n\pi} \sum_{p=1}^{K} \frac{\Delta x_p}{\Delta t_p} \left( \sin \frac{2 \pi n t_p}{T} - \sin \frac{2 \pi n t_{p-1}}{T} \right) \end{aligned} \]

similarly, we can calculate:

\[ \beta_n = \frac{1}{n\pi} \sum_{p=1}^{K} \frac{\Delta x_p}{\Delta t_p} \left( \cos\frac{2 \pi n t_p}{T} - \cos \frac{2 \pi n t_{p-1}}{T} \right) \]

We can also obtain \(x'(t)\) directly from the \(x(t)\) definition:

\[ x(t) = \frac{a_0}{2} + \sum_{n=1}^{\infty} a_n \cos \frac{2 \pi n t}{T} + b_n \sin \frac{2 \pi n t}{T} \]

\[ x'(t) = \sum_{n=1}^{\infty} - \frac{2 \pi n t}{T} a_n \sin \frac{2 \pi n t}{T} + \frac{2 \pi n t}{T} b_n \cos \frac{2 \pi n t}{T} \]

If we compare both derivations of \(x'(t)\):

\[ x'(t) = \sum_{n=1}^{\infty} \alpha_n \cos \frac{2 \pi n t}{T} + \beta_n \sin \frac{2 \pi n t}{T} \]

\[ x'(t) = \sum_{n=1}^{\infty} - \frac{2 \pi n t}{T} a_n \sin \frac{2 \pi n t}{T} + \frac{2 \pi n t}{T} b_n \cos \frac{2 \pi n t}{T} \]

we can equate coefficients from both equations:

\[ - \frac{2 \pi n t}{T} a_n = \beta_n , ~ \frac{2 \pi n t}{T} b_n = \alpha_n \]

and solve for \(a_n\) and \(b_n\) yielding the x projection coefficients:

\[ a_n = \frac{T}{2n^2\pi^2} \sum_{p=1}^{K} \frac{\Delta x_p}{\Delta t_p} \left( \cos \frac{2 \pi n t_p}{T} - \cos \frac{2 \pi n t_{p-1}}{T} \right) \]

\[ b_n = \frac{T}{2n^2\pi^2} \sum_{p=1}^{K} \frac{\Delta x_p}{\Delta t_p} \left( \sin \frac{2 \pi n t_p}{T} - \sin \frac{2 \pi n t_{p-1}}{T} \right) \]

we can also solve for the \(y\) projection in the same way:

\[ c_n = \frac{T}{2n^2\pi^2} \sum_{p=1}^{K} \frac{\Delta y_p}{\Delta t_p} \left( \cos \frac{2 \pi n t_p}{T} - \cos \frac{2 \pi n t_{p-1}}{T} \right) \]

\[ d_n = \frac{T}{2n^2\pi^2} \sum_{p=1}^{K} \frac{\Delta y_p}{\Delta t_p} \left( \sin \frac{2 \pi n t_p}{T} - \sin \frac{2 \pi n t_{p-1}}{T} \right) \]

We now know everything we need to calculate the Fourier series coefficients for the \(x\) and \(y\) projections.

• The number of harmonics is \(n\).
• The length of the chain is \(T\).
• The number of chain links is \(K\).
• The length of each link is \(t_p\).

Elliptical Fourier Series

The DC component determines the centre position of the ellipse.

For those interested, the calculation can be found here:

“Kuhl, Giardina; Elliptic Fourier Features of a Closed Contour, Computer Graphics and Image Processing, 1982”
